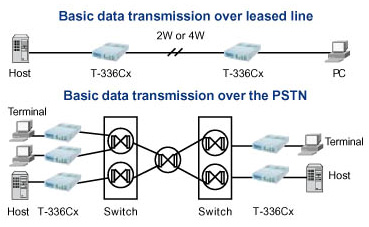

APPLICATIONS
- ATM Terminal, Transaction Data Transmission
- SCADA System in Utility
- Ticketing connection in Transportation Companies
- Radar system data transmission
![](../images/products/modems/t336%20diagram.jpg)
Tainet T336Cx series modem
is a high performance, synchronous and asynchronous, full duplex
multi-standard modem.
It is designed for use on 2-wire dial and 2/4-wire leased line
circuits.
Full comply with ITU-T V.34 recommendation as
well
as being compatible with ITU-T recommend V.32bis/V.32, V.22bis,V.23 and
V.21 international standards, operating at speeds of 33600, 31200,
28800, 36400, 24000, 21600, 19200, 16800, 14400,12000, 9600,7200, 4800,
2400,1200 and 300 bits per second.
V.34 mode provides full duplex operation at up
to
33.6Kbps on 2/4-wires (PSTN) with line probing, symbol rate and carrier
frequency automatic selection.
A range of performance enhancing techniques are
available for V.34 mode, including Adaptive Preceding, Adaptive
Pre-Emphasis, Non-Linear Encoding (Warping), Constellation Mapping,
Multi-dimensional Trellis Coding, Transmission power back-off (power
drop), V.8 standard modem
initialization and Shell Mapping.
An in-band secondary channel allows the user to
monitor and control the remote site unit while the data link is
connected.
The TRS16 rack can accommodate up to 16 modem
cards (T-336Nx), control unit and single or dual redundant power unit.
Dual redundant power supply meaning if one power does fails; the other
oneis capable of powering the entire rack.
Features & Benefits
-
Fully
compatible with ITU-T V.34+/ V.34/
.32bis/ V.32/ V.26bis/ V.22bis/ V.22/ V.23/ V.21/ V.24/ V.28/ V.25bis/
V.54/ V.52/ V.42/ V.42bis/ V.14/ V.13/ V.8 and Bell 212A/ 103.
-
Achieve
throughput of up to 115200bps
-
MNP4® V.42
error correction
-
MNP5®
V.42bis data compression
-
Extended
AT and ITU-T V.25bis command set
-
V.13
simulated carrier in half duplex
-
Automatic
leased line dial back-up and restore with manual or auto
-
Auto fall
back and fall forward.
-
Remote
configuration via secondary channel.
-
Front
panel lock and password protect
-
Rack
mounted type up to 16 modem
cards in a 19" width chassis with hot swap and copy profile functions
-
Diagnostic
capabilities
-
Auto or
manual dialing / answer
-
Front
panel configuration via rubber switch and LCD.
-
G3 FAX
send / receive fully compatible with EIA-578 Class 1 FAX command
(optional)
Ordering
Information
T-336Cx : V.34+, 33600bps external modem, dial-up & 2/4
wire leased line supported
|
